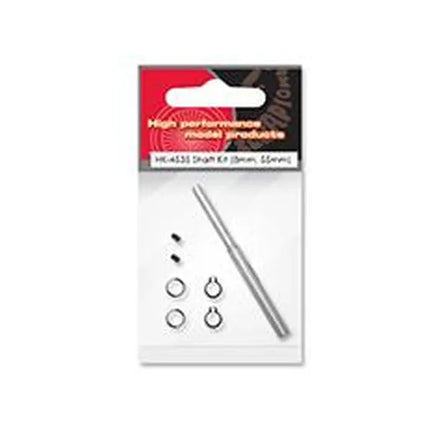

Scorpion HK-HK-4535 Shaft Kit (8mm 55mm)
Sorry, this product is temporarily out of stock.
The Scorpion HK-4535 motors shaft kit are built with 10mm hardened steel shafts that will last through countless hours of flying fun, but occasionally, on a "Less than Perfect" landing, you may bend or break one. For these occasions, we offer factory replacement shafts for all the HK-4535 series Scorpion Helicopter Motors.
This extended shaft for the HK-4535 series motors measures 10mm in diameter, and is 122mm in long. The pinion end of this shaft is ground down to 8mm to allow the user to install 8mm pinion gears. The shaft kit will also fit other brushless motors that require a 10mm shaft of this length. The shafts can be cut shorter with a Dremel tool and a cut-off wheel if necessary to fit other motors.
Note: The shafts in the Scorpion motors are a slight press fit into the aluminum front housing. The shafts will not just slide out when the setscrews are removed. They need to be pressed out in a bearing press, or in a drill press, with the front housing of the motor supported in a block of wood to prevent warping the front housing.
