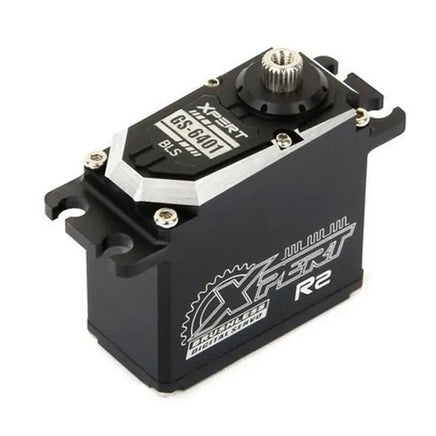

Xpert GS-6401-HV R2 Brushless HV Cyclic Servo

$199.99 AUD
SKU: GS-6401-HV
Features
  • Quick release cable that allows easy and quick installation for all helicopters.
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant
  • Operating frequency up to 400Hz

  • SPECIFICATIONS

    Type Standard
    Product Name GS-6401-HV(R2)
    Part Name GS-6401-HV(R2)
    Power Supply 6.0V~8.4V
    Speed (sec/ 60) @6.0V: .086 sec/60 @7.4V: .07 sec/60 @8.4V: .062 sec/60
    Torque (oz/in) @6.0V: 296.45 oz-in @7.4V: 366.85 oz-in @8.4V: 416.40 oz-in
    Torque (kg/cm) @6.0V: 21.43 kg-cm @7.4V: 26.43 kg-cm @8.4V: 30.00 kg-cm
    Dimensions 40x37.80x20 mm
    Weight
    Frequency 200/333 Hz
    Range 50~400 Hz
    Center Position 1520ms
    Applications Helicopter
    Uper and Bottom Case XC-09
    Hardware Parts Xpare-01
    Gear Set XGS7232S
