Scorpion HK-4035 Shaft Kit (5mm 30mm)-Mad 4 Heli

Scorpion HK-4035 Shaft Kit (5mm 30mm)

$46.99 AUD
SKU: [HK_4035_5mm_Shaft]

The Scorpion HK-4035 motors are built with 8mm hardened steel shafts that will last through countless hours of flying fun, but occasionally, on a "Less than Perfect" landing, you may bend or break one. For these occasions, we offer factory replacement shafts for all the HK-4035 series Scorpion Helicopter Motors.

The shaft for the HK-4035 series motors measures 8mm in diameter, and is 94.7mm in long. The pinion end of this shaft is ground down to 5mm to allow the user to install 5mm pinion gears. The shaft kit will also fit other brushless motors that require a 5mm shaft of this length. The shafts can be cut shorter with a Dremel tool and a cut-off wheel if necessary to fit other motors.

Note: The shafts in the Scorpion motors are a slight press fit into the aluminum front housing. The shafts will not just slide out when the setscrews are removed. They need to be pressed out in a bearing press, or in a drill press, with the front housing of the motor supported in a block of wood to prevent warping the front housing.

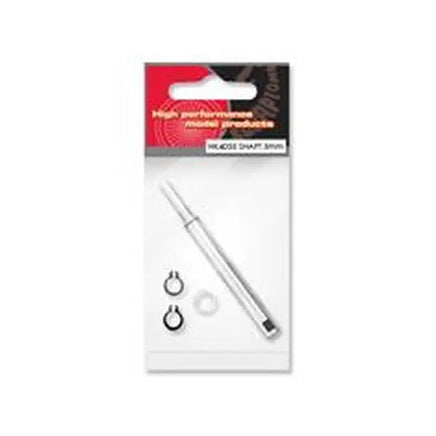

Included in the Box

- HK4035 Motor Shaft (5mm) x1
- Washer x 1
- C-Clip x 2

Weight including packaging
