●AP6 Flight Control System x 1
●GNSS Remote Receiver x 1
●Transmitter x 1
●G3P 4K 3-axis Gimbal x 1
●Front Obstacle Avoidance Radar x 1
●Altitude Radar x 1
●6S 10000mAh Intelligent Battery x 1
●Balance Charger x 1
●Auto Retractable Landing Skid x 1 set ●Enhanced Control Hook x 1
●100g Lead Block x 2
●Suite Case x 1
●Omnidirectional Obstacle Avoidance Radar
RM49005XW ALIGN M490TOP Aerial Photography Drone
Focus Shots

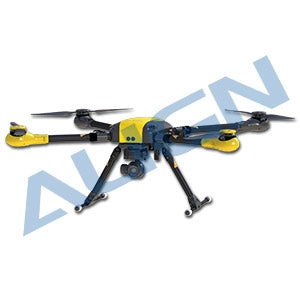

ALIGN M490TOP Aerial Photography Drone
Standard Equipment
●M490 Drone Kit Set x 1●AP6 Flight Control System x 1
●GNSS Remote Receiver x 1
●Transmitter x 1
●G3P 4K 3-axis Gimbal x 1
●Front Obstacle Avoidance Radar x 1
●Altitude Radar x 1
●6S 10000mAh Intelligent Battery x 1
●Balance Charger x 1
●Auto Retractable Landing Skid x 1 set ●Enhanced Control Hook x 1
●100g Lead Block x 2
●Suite Case x 1
Product Specification
●Airframe Diameter: 905mm
●Height: 318mm
●Foldable Rotor: 7.5 Inches
●Propeller Diameter: 415mm
●Power System: RCM-BL4213 Motor(370KV)
●Max. Flight Distance：3km(no interference)
●Max. Flight Altitude：500M
●Max. Speed：20M/sec
●Frame Weight: 2.84kg
●Flying weight: 4.01Kg (including 6S 10000mAh battery)
●Max. Takeoff Weight: 7.81kg
●Flight Time: Approx. 28min (no load)
●Wind Force Scale: Level 8
●Airstop Accuracy:
Vertical：±0.5M (GNSS signal normal)
Horizontal：±0.5M (GNSS signal normal)
●Height: 318mm
●Foldable Rotor: 7.5 Inches
●Propeller Diameter: 415mm
●Power System: RCM-BL4213 Motor(370KV)
●Max. Flight Distance：3km(no interference)
●Max. Flight Altitude：500M
●Max. Speed：20M/sec
●Frame Weight: 2.84kg
●Flying weight: 4.01Kg (including 6S 10000mAh battery)
●Max. Takeoff Weight: 7.81kg
●Flight Time: Approx. 28min (no load)
●Wind Force Scale: Level 8
●Airstop Accuracy:
Vertical：±0.5M (GNSS signal normal)
Horizontal：±0.5M (GNSS signal normal)
Optional Equipment
●Omnidirectional Obstacle Avoidance Radar
Flight Safety
