Full Dimension
Specifications
| Max Continuous Current | 80 Amps |
| Peak Current | 110 Amps |
| Operating Voltage Range | 11-26.1 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 8 Amps @ 8.1 V |
| Peak BEC Output | 12 Amps/1s @ 8.1 V |
| On Resistance | 0.45mohms * 2 |
| ESC Body Size | 32.0 x 52.2 x 20.3 mm (1.26 x 2.07 x 0.79 in) |
| Mounting Tab Dimensions | 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt |
| Weight (Without Connectors) | 70.0g ( 2.47oz) |
| Drive frequency | 8kHz - 32kHz |

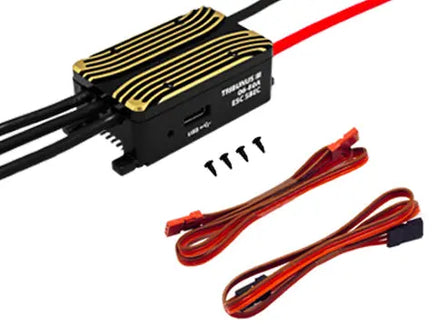

Included in the Box
1 x Tribunus III ESC
1 x 30mm Cooling Fan
2 x BEC Cables
1 x Mounting Hardware Pack
Weight including packaging
130g
