Scorpion HK-4035 Shaft Kit (8mm 30mm)
The Scorpion HK-4035 motors are built with 8mm hardened steel shafts that will last through countless hours of flying fun, but occasionally, on a "Less than Perfect" landing, you may bend or break one. For these occasions, we offer factory replacement shafts for all the HK-4035 series Scorpion Helicopter Motors.
The shaft for the HK-4035 series motors measures 8mm in diameter, and is 94.7mm in long. The shaft kit will also fit other brushless motors that require a 8mm shaft of this length. The shafts can be cut shorter with a Dremel tool and a cut-off wheel if necessary to fit other motors.
Note: The shafts in the Scorpion motors are a slight press fit into the aluminum front housing. The shafts will not just slide out when the setscrews are removed. They need to be pressed out in a bearing press, or in a drill press, with the front housing of the motor supported in a block of wood to prevent warping the front housing.

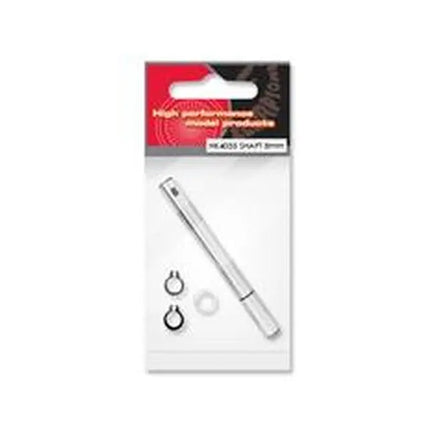

Included in the Box- HK4035 Motor Shaft (8mm) x1
- Washer x 1
- C-Clip x 2
