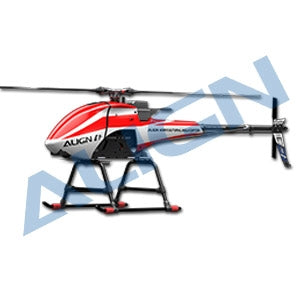

RHE1E30XW ALIGN E1 900 ARTF Multi-Functional Helicopter Combo.
Shipping Instructions
●Pre-assembled and well-tested in factory.●Packing Dimension
Standard Equipment
●ALIGN E1 900 Kits Set x 1 set●830mm Carbon Fiber Blades x 1 set
●120mm Fiber Tail Blades x 1 set
●A13 GST Transmitter set(include A6B Receiver) x 1
●Main Power - 950MX Brushless Motor x 1
●200A ESC Brushless Motor Controller x 1
●DS820M High Voltage Brushless Servo x 3
●DS820 High Voltage Brushless Servo x 1
●AP2 Flight Controller System x 1
●P2 PCU Power Control Unit Set x 1
●Millimeter Wave Radar x 1
●VTD1 1080 HD Digital Video Transmitter Set x 1
●12S Power Control Unit x 1
●E1 SubControl Set x 1
●1080 DV Two-axis Gimbal Set x 1
●Super Bright LED Front Headlight x 1
●E1 Fire Extinguishing Ball Conversion Set x 1
●Screw Driver x 1 set
●Ball Link Plier x 1
●8" Hood for Tablet x 1
ALIGN E1 900 Product Specification
●Body Length：1587mm●Body Height：570mm
●Body Width：427mm
●Main Rotor Length：830mm
●Main Rotor Diameter：1846mm
●Tail Rotor Diameter：313mm
●Motor Drive Gear：9T/M1.25
●Main Drive Gear：104T/M1.25
●Autorotation Tail Drive Gear：122T
●Umbrella Gear：19T/M1.25
●Tail Drive Gear：23T
●Drive Gear Ratio：11.56:1:5.30
●Weight(Without Battery)：Approx. 6.1kg
Self-provided Equipment
●UP600+ Intelligent Charger System (AC 110V or AC 220V)●Main Power Battery 6S Li-Po 10000~16000mAh x 2 pcs
●PCU Battery 3S 2200~3300mAh x 2 set and more
●AUTO FIRE OFF fire extinguishing ball
- * Spherical, 14.5cm in diameter.
- * Weight: 1.2 kg.
- * Class A, B, C dry powder for fire extinguishing.
- * Packing method: 1pc/color box.
- * Lightweight and beautiful, easy to use and light weight with only 1.2 kg.
- * E1 is equipped with fire extinguishing ball to be put into the forest fire, as long as it is in contact with the flame for 3 to 5 seconds, the fire extinguishing ball can be exploded. Class A, B, C fire extinguishing powder can quickly disperse the fire source, or it can be placed around the fire scene to set up the fire line to achieve the preventive effect.
- * After being heated, the fire-extinguishing dry powder in the ball is evenly exploded and dispersed to achieve the fire-extinguishing effect. After use, the dry powder can be converted into fertilizer for use, which is environmentally friendly and pollution-free.
- * Support Android V8.0 or better.
- * Considering the best working efficiency, the specifications of the tablet are recommended as follows: 8” Tablet, 6 Core CPU, 3GB RAM, more than 32GB ROM storage space and support 5G Wi-Fi.
- * The max. dimension of screen bracket is 240 x 169mm.
Samsung Galaxy Tab A /Model Type：SM-T385
Samsung Galaxy Tab A 8.0 /Model Type：T295 (LTE)
Samsung Galaxy P200
Samsung Galaxy Tab A 10.1 /Model Type：SM-T510
Mi Band 4
ASUS ZenPad 3 8.0 /Model Type：Z581KL
ALIGN E1 900 Specification
A13 GST Transmitter
●Channel: 14 channels●Model Type: Helicopter / Multicopter
●RF Range: 2.4055~2.475GHz
●RF: < 20dBm
●System Mode: 2.4G system AFHDS
●Power: Built-in 2S 5800mAh Li-Polymer Battery
●Display: 128x64mm
●Transmit Distance: In the air without interference <1000M
●Weight: 650g
●Dimension: 167x180x103mm
●Certificate: FCC, NCC(CCAK19LP0390T9)
A6B Receiver
●Channel: 14 channels●RX Sensitivity: -105dBm
●RF Range: 2.4055 ~ 2.475 GHz
●System Mode: 2.4G system AFHDS
●Power: 4.0 ~ 8.4V
●Transmit Distance: In the air without interference <1000M
●Weight: 14g
●Dimension: 46.7x25.5x13.6mm
●Certificate: FCC, NCC(CCAK18LP1930T2)
AP2 Flight Control System
●Input Voltage：DC 6-8.4V●Operating Current Consumption：< 300mAh @ 6V
●Operating Frequency：180MHz
●Operating Temperature：-20°C ~ 65°C(-4°F ~ 149°F)
●Hovering Precision (Depending on Satellite Status)：Horizontal ±1m(3.28ft)，Vertical ±0.5m(1.64ft)
●Maximum Flight Speed：8M/sec
●Maximum Altitude Restriction：300m(984ft) above the takeoff point
●Maximum Angular Speed：Aileron/Elevator 200°/sec, Rudder 400°/sec
●Maximum Tilting Angle：40°
●Supports Helicopter Configurations：ALIGN E1 / G1
●Dimension：43.8x35.5x20.4 mm
VTD1 1080 HD Digital Video Transmitter
●Working Frequency：5~5.9Ghz●Way of Transmission：SDR Wireless Transmission Frame
●Wide Transmission Distance：1.5~2km
●Emission Power：200mw(23dBm)
●Power Consumption：Transmitter < 2.5W，Receiver < 2W
●Latency：< 40ms
●Video Output：1080P/720P HD Digital Video Transmission
●Mobile Phone/Tablet：Android and Flight Controller OSD Display
●Antenna：5dB Circular Antenna
●Dimension：66x62x13mm
●Weight：41.8g
950MX Brushless Motor
●Input Voltage：12S●Max Continuous Current：120A/250A(2sec)
●Max Output Power：5300W/11000W(2sec)
●KV Value：440KV
●Stator Arms：12
●Magnet Poles：10
●Dimension：6x56.7x117.5mm
●Weight：663g
Millimeter Wave Radar
●Emission Frequency：24~24.20 Ghz●Emission Power ( EIRP )：13~24 dBm
●Measurement Accuracy：±0.02M
●Update Rate：50Hz
●Range Resolution：0.75M
●Working Temperature：-40℃~85℃
●Dimension：92x63x6mm(HxWxD)
●Weight：22g
P2 PCU Power Control Unit
●Input Voltage：7.4V~12.6V●Operating Frequency：168MHz
●Operating Temperature：-20°C~65°C(-4°F~149°F)
●Dimension：49.5x40.5x26.8mm
1080 DV Two-axis Gimbal
●Working Voltage : 5~12V●Image Output: 1080P 30fps
●Lens Angle : 130°
●Aperture: F2.0
●Support Low Light Compensation, 3D/2D Dynamic Noise Reduction, Auto Exposure, Auto Focus, and Auto White Balance
●Capable of Gimbal Control Angle: 0° ~ -90°
●Dimension：100.4x74x111.5mm
E1 fire extinguishing ball conversion set spec
● Input voltage: 8.4V● Number of mounts: 6
● Max. weight of single mount: 2.5kg
● Max. weight of all mounts: 15kg
● Launch control: Transmitter & Ground station
More E1 fire extinguishing ball conversion spec.
ALIGN E1 900 - Mount Fire Extinguishing Ball
