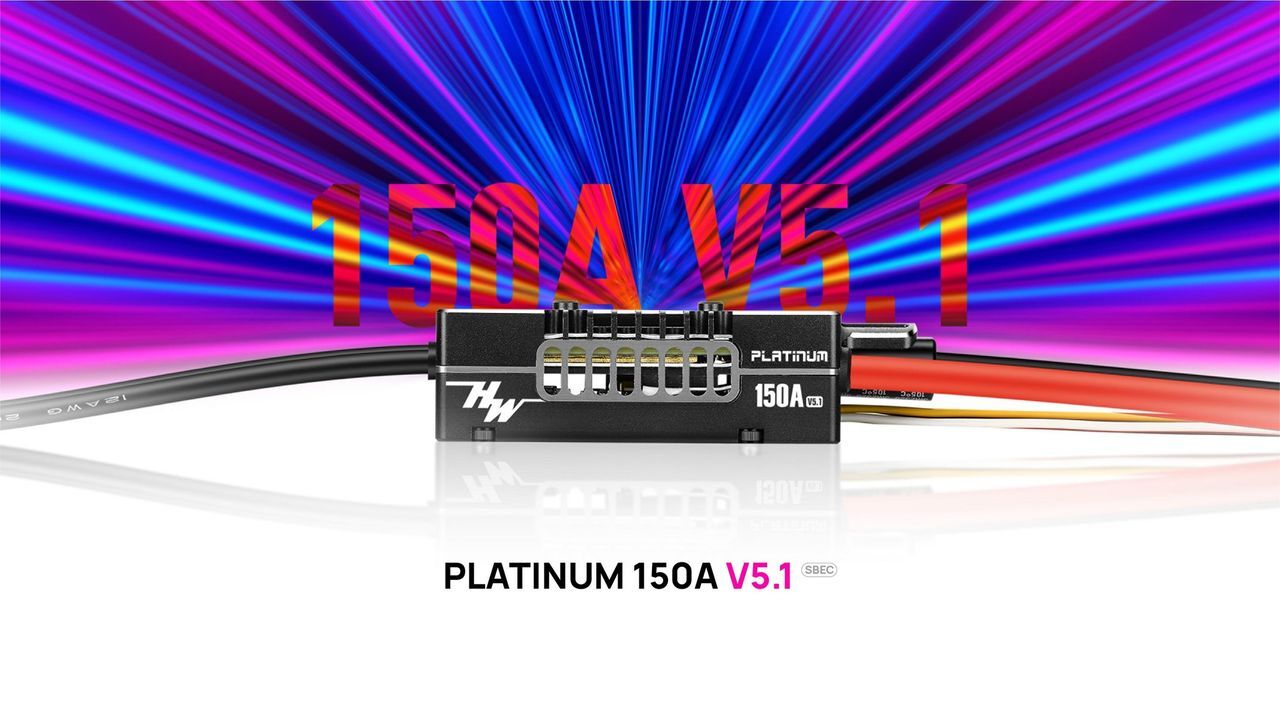

HW30203501 HOBBYWING Platinum 150A V5.1

$319.99 AUD
SKU: HW30203501
← Previous Product Next Product →

HOBBYWING Platinum 150A V5.1: A Game-Changer for RC Enthusiasts

Product Number
  30203501
Type
Brushed/Brushless BL
High Voltage/Regular Regular
Specifications
Cont./Peak Current 150A/180A
Input Voltage 3-8S Lipo
BEC Output Switch Mode:5-12V & Cont. 10A，Peak 30A
Wires & Connectors
Input Wires Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires Black-12AWG-100mm*3
Input Connectors No
Output Connecotors 4.0mm Gold Connectors (Female)
ESC Programing via
Transmitter Not Support
LED Program Card Not Support
LED Program Box Not Support
LCD Program Box Supported
OTA Programmer Supported
Program Port Separate Program Port
Firmware
Firmware Upgrade Supported
Telemetry Function
  Mikado VBar；Futaba S.Bus2；etc.
Size & Weight
Size 83.2*37.1*22.5mm (without fan)
Weight 150.4g (with wires, no fan)
Application scope
  520-580 class electric helicopter (main blade length 520-580mm),or fixed-wing
