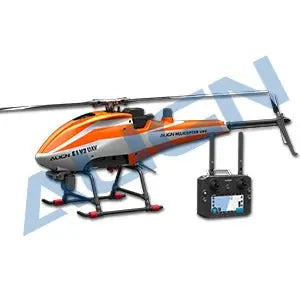

RHE1E34XW Align E1 V2 Combo Special Order: Precision Meets Performance
RHE1E34XW Align E1 V2 combo
●ALIGN E1 V2 Kits Set x 1 set●900mm Carbon Fiber Blades x 1 set
●115mm Fiber Tail Blades x 1 set
●Transmitter set x 1
●Main Power - 1000MX Brushless Motor(350KV) x 1
●130A ESC Brushless Motor Controller x 1
●DS830M High Voltage Brushless Servo x 3
●DS820 High Voltage Brushless Servo x 1
●AP6 Flight Controller System x 1
●GNSS/RTK Receiver x 1
●1080 Gimbal Set x 1
●Super Bright LED Front Headlight x 1
●Enhanced Control Hook x 1
RHE1E34XW Align E1 V2 combo
●Body Height：560mm
●Body Width：345mm
●Main Rotor Length：900mm
●Main Rotor Diameter：1986mm
●Tail Rotor Diameter：303mm
●Power Motor：MX1000 (350KV)
●Weight(Without Battery)：Approx. 7.6kg
●Unladen Weight：13kg(Include 22000mAh Battery)
●Max. Take-off Weight：24.9kg
●No-load Flight Time: about 43min (With 22000mAh Bettery)
Self-provided Equipment
●Balance Charger●Main Power Battery 6S 22000mAh x 2 pcs
RHE1E34XW Align E1 V2 combo
Transmitter
●Channel: 12 channels●Model Type: Multicopter
●RF Range: 2.400~2.483GHz
●RF: < 20dBm
●System Mode: 2.4G system FHSS
●Power: Built-in 10000mAh Rechargeable Li-Polymer Battery
●Working Time: Around 6~20 hours
●Display: 5.5 inch HD LCD touch screen
●Transmit Distance: In the air without interference 3~5 KM
●Weight: 530g
●Dimension: 190x152x94mm
AP6 Flight Control System
●Processor model: STM32H753●Operating frequency: 480MHz
●Processor LASH: 2M
●Processor RAM: 1M
●IMU(Shockproof level)
- Accelerometer/Gyroscope:
- ICM-20948 x 1
ICM-42688-P x 2
- ICM-20948 x 1
●I2C(communication interface)：3
●CAN (communication interface): 2
●PWM output: 10
●RC input: S.bus and A.bus
●Power input: 2 (5V IN or RC IN)
●GPS/RTK interface: 2
●Input voltage:
- RC IN(DC 5V~8.4V)
5V IN(DC 4.5V~5.5V)
●USB: TYPE-C
●USB voltage: 4.5V~5.5V
●Dimensions: 48.2x32.2x22.5mm
●Weight：34g
1000MX Brushless Motor
●Input Voltage：12S●Max Continuous Current：120A/200A(2sec)
●Max Output Power：6000W/10000W(2sec)
●KV Value：350KV
P2 PCU Power Control Unit
●Input Voltage：7.4V~12.6V●Operating Frequency：168MHz
●Operating Temperature：-20°C~65°C(-4°F~149°F)
●Dimension：49.5x40.5x26.8mm
●Weight：94.56g
1080 Gimbal
●Working Voltage : 5~12V●Image Output: 1080P 30fps
●Lens Angle : 130°
●Aperture: F2.0
●Support Low Light Compensation, 3D/2D Dynamic Noise Reduction, Auto Exposure, Auto Focus, and Auto White Balance
●Capable of Gimbal Control Angle: 0° ~ -90°
●Dimension：100.4x74x111.5mm
ALIGN E1 900 - Mount Fire Extinguishing Ball
What Makes the RHE1E34XW E1 V2 Combo Unique?
If you're looking for a high-performance solution, the RHE1E34XW E1 V2 combo special order is your best bet. This Align E1 product combines cutting-edge technology with unmatched reliability. Because it’s a special order item, you can customize it to meet your specific needs, which makes it stand out from standard offerings. However, keep in mind that availability might vary depending on your region.
Why Choose the RHE1E34XW E1 V2 Combo?
The RHE1E34XW E1 V2 combo offers advanced features that enhance its functionality. For example, it includes upgraded components designed to deliver superior results. So, whether you're using it for personal or professional purposes, this product will exceed your expectations. Additionally, its compatibility with various systems ensures seamless integration into existing setups.
How to Place an Order for the RHE1E34XW E1 V2 Combo
Because the RHE1E34XW E1 V2 combo is a special order product, placing an order requires direct communication with our team. You can reach out via email or phone to inquire about pricing and availability. Once you provide us with your requirements, we’ll guide you through the process. Remember, acting quickly is important because demand for this Align E1 product is consistently high.
