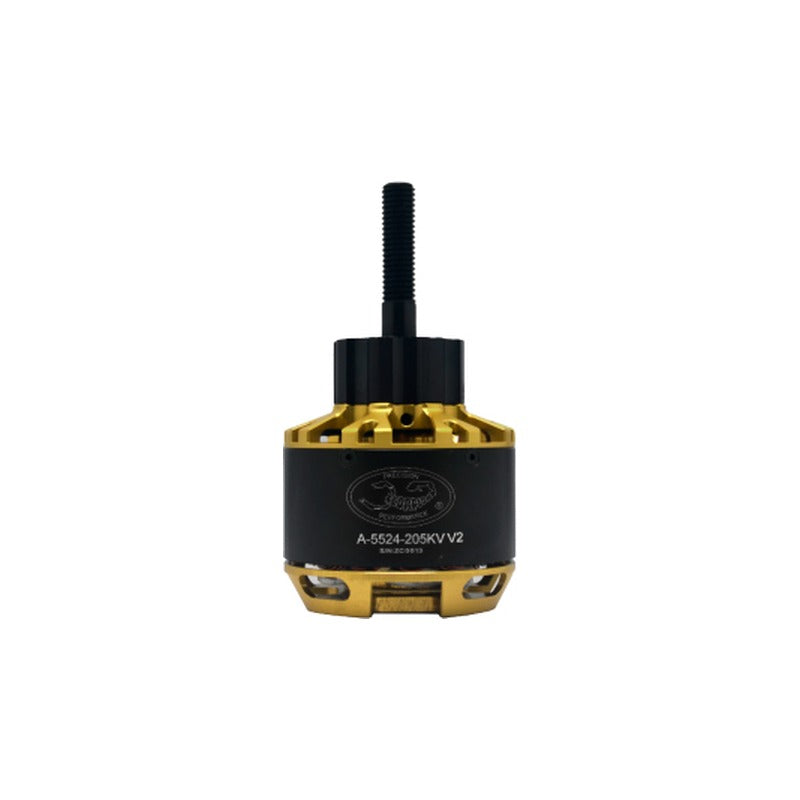

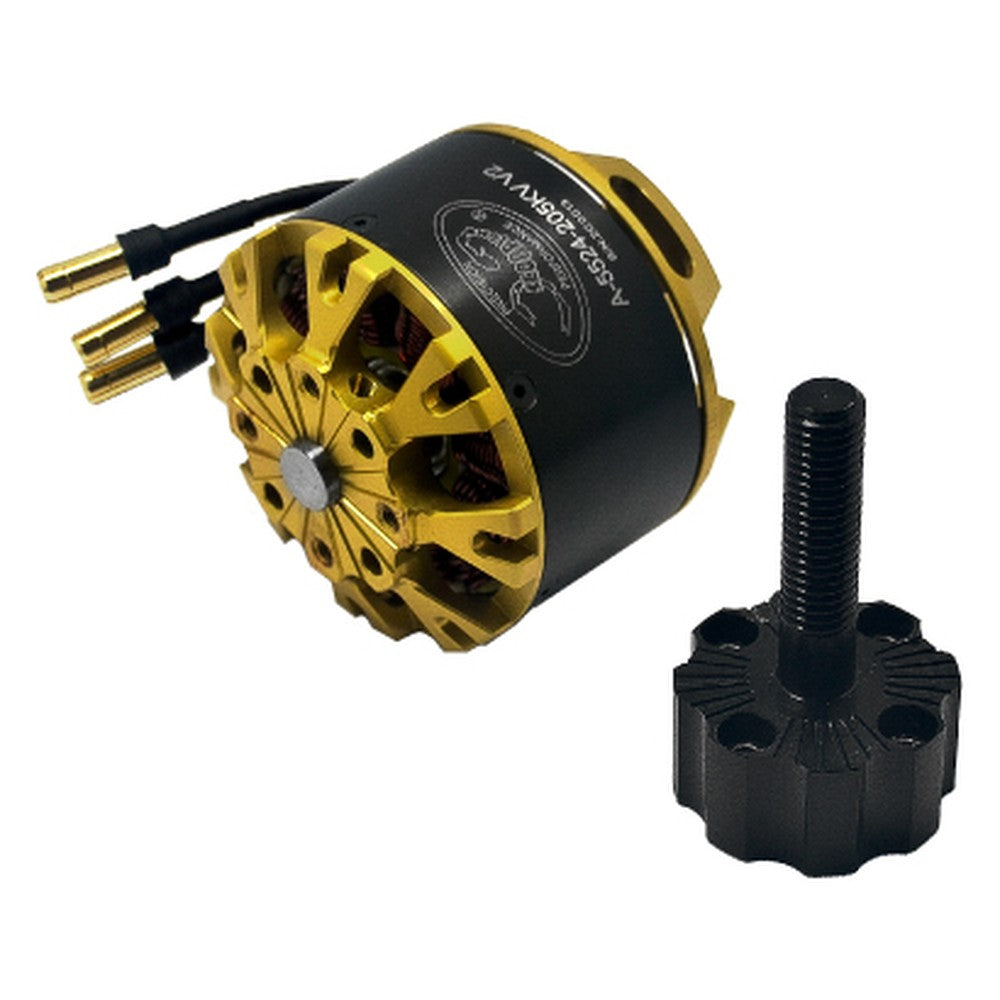

A_5524_205_V2 Scorpion A-5524-205KV V2 (Special Order)

Genuine Scorpion A-5524-205KV V2 from Scorpion Power System.

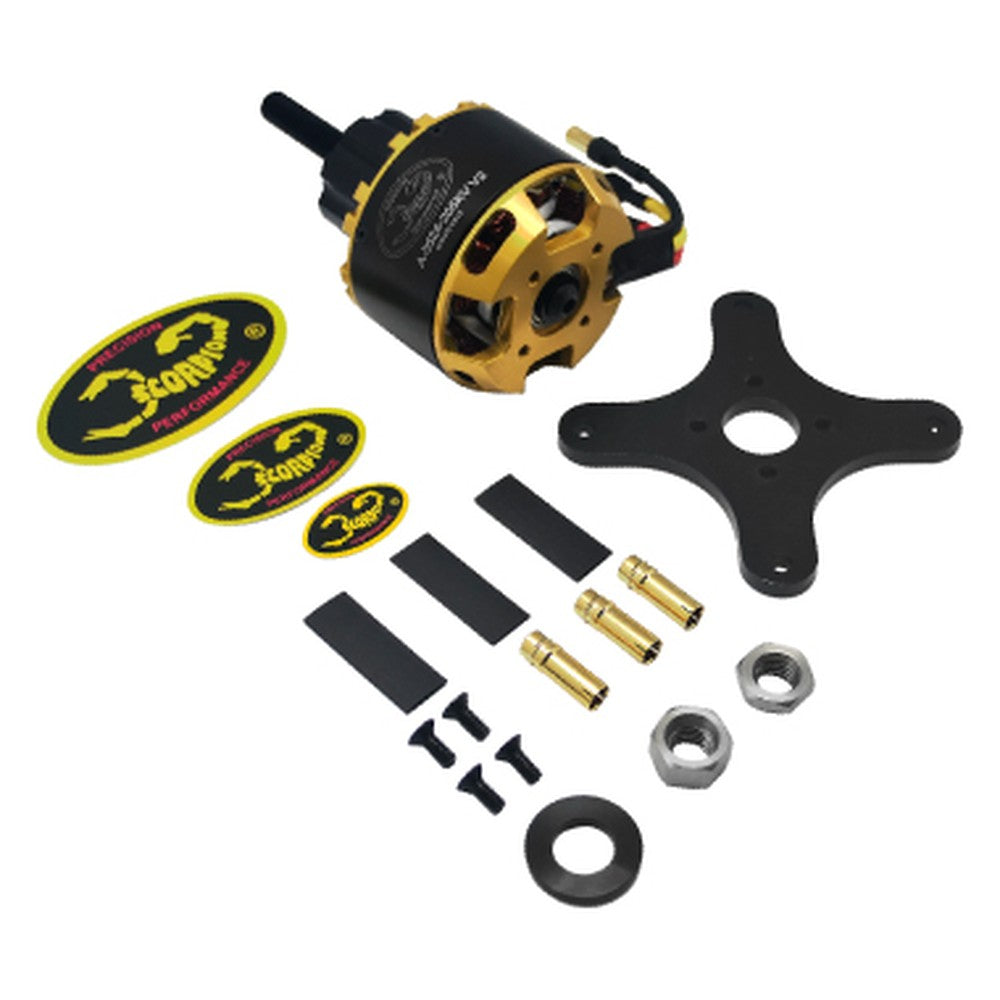

Includes:
- Scorpion A-5524 BLDC Motor x 1pc
- A-55/65 Cross Mount (stock) x 1pc
- M4 Cross Mount Mounting Bolts x 4pcs
- Prop Bore Spacers (8x10x 4/4/10) x 3pcs
- Female 6mm Connectors x 3pcs
- Heat Shrink x 3pcs
- Scorpion Stickers x 3pcs
- M8 Nuts x 2pcs
- A-5524 Official Promo Video
- Orel Zohar - A-5524 PNP Combo - Pilot RC 73" Laser (12s)
- A-5524-205kv Thrust Data(.pdf)
- A-5524-205kv Thrust Data(.xlsx)

Used for: Electric RC airplanes

Specifications:
Motor Kv: 205 RPM / Volt
Stator Diameter: 55.0 mm
Stator Thickness: 24 mm
Weight (Motor only): 622g
External Shaft Diameter: 10mm
Motor Body Dimensions: 74.0 mm x 65.8mm
Max Rated Lipo Cell: 12s
Continuous Current: 80A
