Dear Customers,
Here is the Pre order for the NEW GENESIS COMPETITION from SAB. A $1000 deposit is required to lock in your position. SAB has announced that they will be working on this until its right. Once SAB releases dates and pricing we will adjust the amount remaining and payment will need to be completed before fullfilment.
Final price and release date has yet to be released.
The new GENESIS Competition is completely redesigned, offering several advanced features:
Transmission:
• Belt Drive: Ensures a very quiet and smooth transmission.
• One-Way Bearing: positioned directly on the main shaft for maximum smoothness during autorotation.

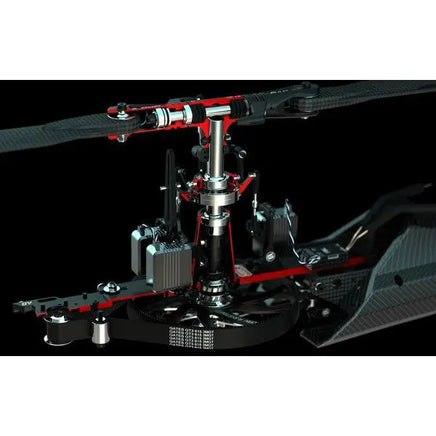

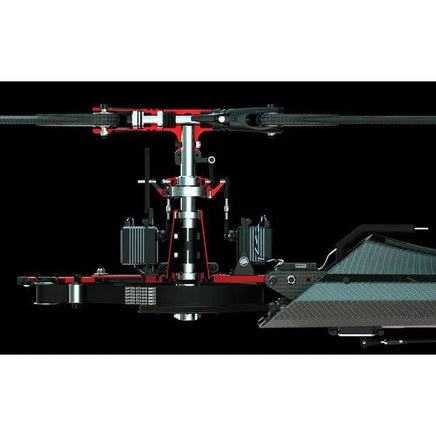

• 15 mm Main Shaft: Supported by two bearings assembled in a separate unit for ease of maintenance. Rotor Head:

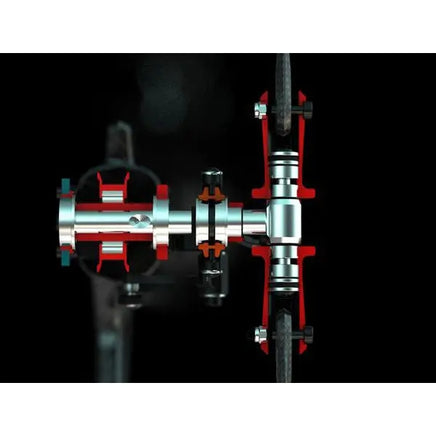

• New Design: Features 35 mm blade grip arms with a new locking system.
• Self-Centering Titanium Washers: Ensure automatic centering for greater precision.
• Pivot Option for Spindle: Fully configurable for rigidity and maximum movement.
Tail Rotor:
• 8 mm Tail Shaft with 8x16x5 bearings for significantly increased rigidity.
• Single-Piece Shaft and Hub: Made from a single piece for maximum precision.
• Double-Point Pitch Control Slider: Reduces play in the tail rotor control. Tail Boom:
• Molded Carbon Fiber: Tail boom is molded carbon fiber and assembled directly to the main frame.
• Belt Tensioning System: Includes an indicator for tension force for optimal control.
Canopy and blades:
• Rear Battery Insertion: Batteries are inserted from the rear with integrated connectors.
• No Canopy Removal Needed: Canopy does not need to be removed for battery changes.
• The kit includes new F3C S737 main blades and the new S110 tail blades.
The Genesis Competition offers advanced features that make it an excellent choice for both competition and demanding RC helicopter enthusiasts.

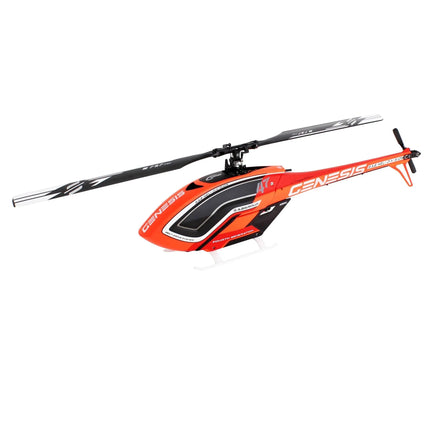

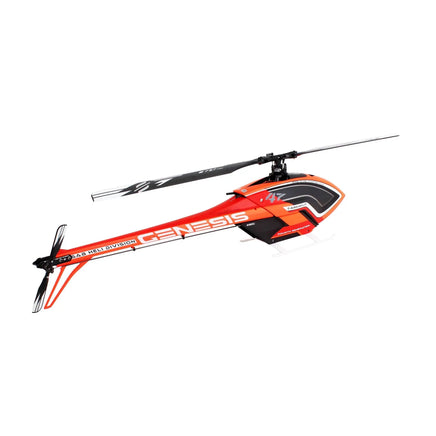

GENESIS COMPETITION [SG765 - Orange]
Specification:
• AIRFRAME weight: 2584 gr (no blades, no battery, no electronics).
• Main rotor diameter: 1650 mm (with 737 mm blades).
• Main blade length: 690 to 760 mm.
• Tail rotor diameter: 292 mm (with 110 mm tail blades).
• Tail blade length: 105 to 115 mm.
• Cyclic Servos: Standard size 40 mm.
• Tail Servo: Standard size 40 mm.
• Main Rotor Ratio: 8,73 to 7,2 (21T included: 7,9:1).
• Tail Rotor Ratio: 4,24:1
• Main shaft 15 mm, Tail shaft 8 mm
• Molded carbon tail boom
• Motor 12S, 360/420 KV
• Battery room: 50x60x30 mm
KIT Includes:
• 21T motor pulley (other pulley sizes available).
• 2 battery trays with integrated connectors.
• S737 Silver (737 mm F3C main blades)
• S110 Silver (110 mm tail blades)
