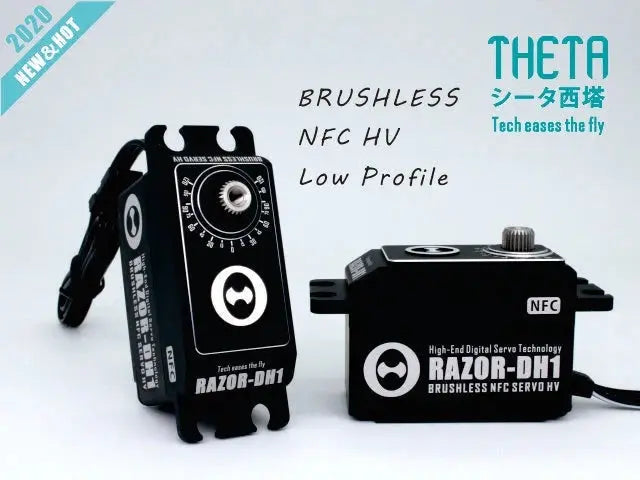

High voltage, High-Torque, low profile size brushless servo. Ideal for small machines requiring full size servos, but where weight is a concern, such as 500-600 helis. Suitable for 1/10 scale vehicles.
The Servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!
- High Voltage
- High Speed
- Excellent Centering
- Compatible with Futaba type horns/arms
- Fully programmable via NFC enabled Android smart phones
- Light Weight
|
Voltage（V） |
Current（A） |
Speed (s/60°) |
Torque (kg*cm) |
|
5.0 |
3.0 |
0.108 |
12 |
|
6.0 |
3.0 |
0.09 |
13.5 |
|
7.4 |
3.0 |
0.08 |
15 |
|
8.4 |
3.0 |
0.07 |
16 |
PULSE: 760us/1520us
Frequency Range: 50-400Hz
