Scorpion A-6528 PNP Combo (compact) Special Order

Product Description

In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work, and customization out of using Giant Scale Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 60cc-76cc sized airplanes. The A-6528 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, pre-programmed, Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency!

With 3D flight, low end torque and acceleration are crucial. Many companies opted to go with a “large diameter / thin height / high pole count motors" to try and get increased torque / acceleration. However doing this has the side effect of very large physical size and Lower Peak Efficiency. We at Scorpion have opted to stay with our proven 12N14P stator design. We have fine-tuned the magnets in the rotor to have amazing Peak Efficiency, and amazing Top End Power. Then, when used in combination with our Tribunus ESC, which has our proprietary drive algorithm which has unique switching pattern, along with features such as dynamic timing and dynamic frequency, we are still able to attain amazing low-end torque and acceleration. With the combination of the 2, we get “the best of both worlds” in the sense we have amazing peak Efficiency and Power with our stator design, and amazing low-end torque from the ESC side. Additionally, physically speaking our motors are similar length, with a much smaller outer diameter then other designs, which can be easier to fit inside cowls or fuselages of your airplane or UAV.

This specific A-6528 PNP Combo (12s), is designed for 12s powered 85"-95" Acrobatic Airplanes, or other Sport / UAV airplanes requiring up to 6000w of power. This motor is equivalent to a 60cc/76cc gas engine. We call it 60/76cc because with a 23" prop it is very equivalent to a 60cc gas engine and pulls less amps and therefore could run smaller batteries for lighter overall model weight. Or with a 24" prop it pulls as hard as a 76cc gas engine making over 18.18kg (40lbs) of thrust, but with more amps thus requiring a larger (heavier) battery.

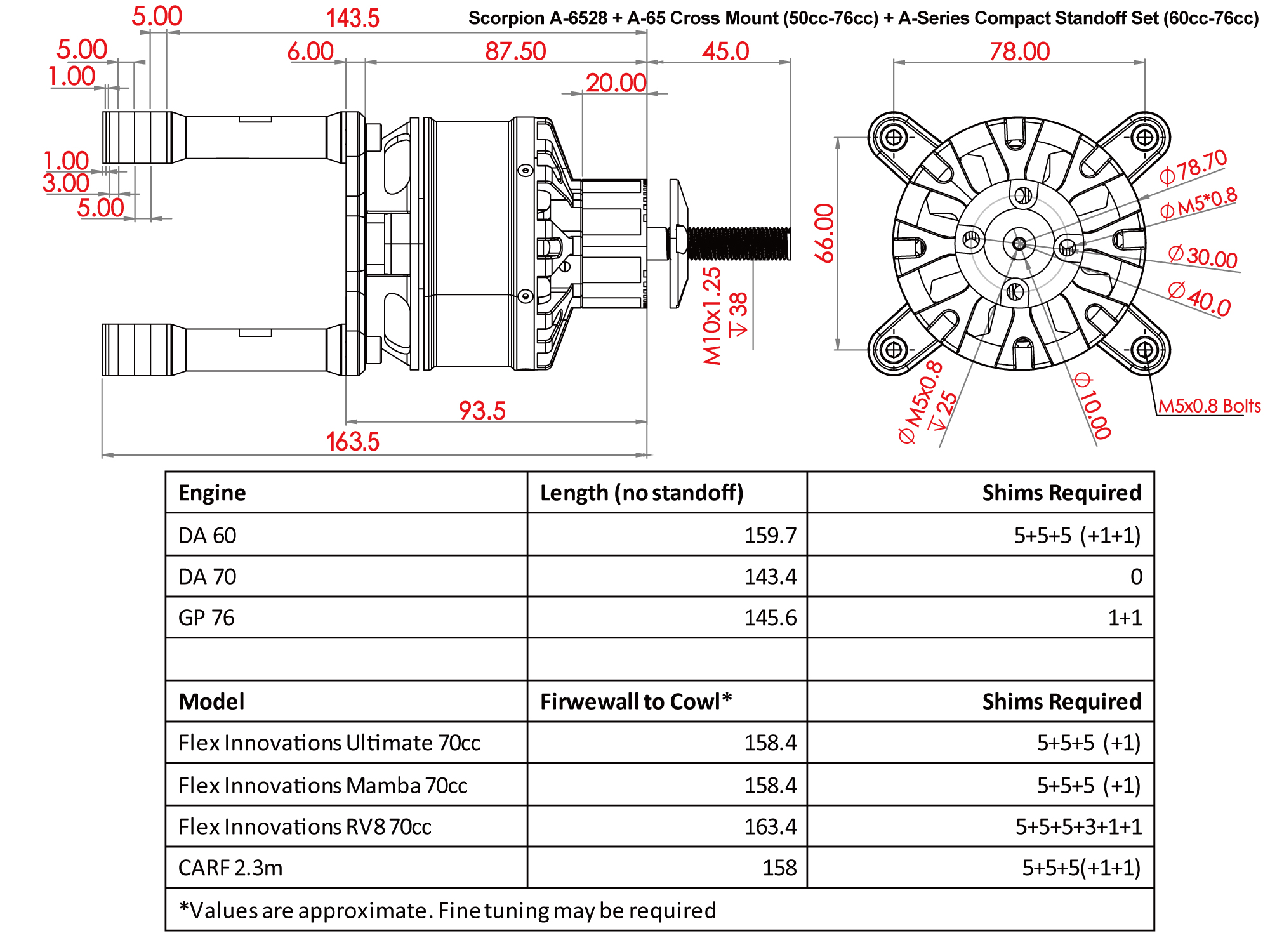

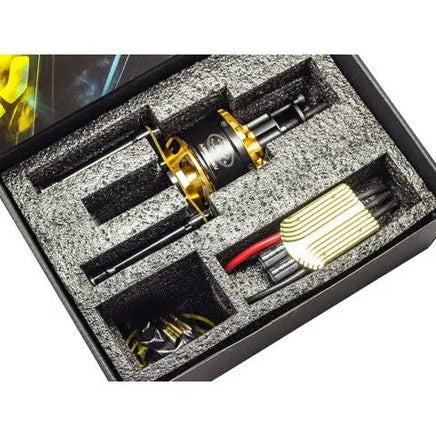

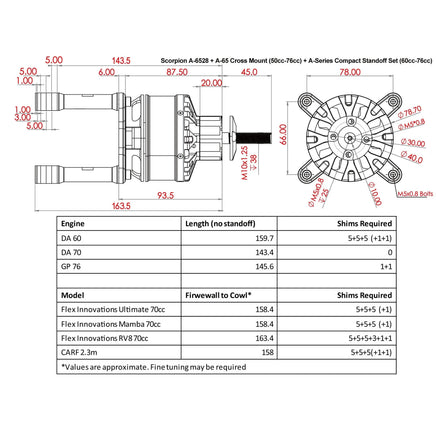

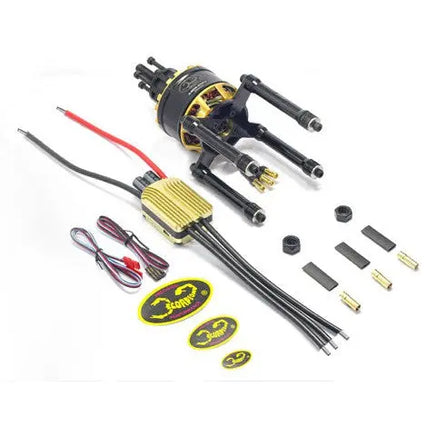

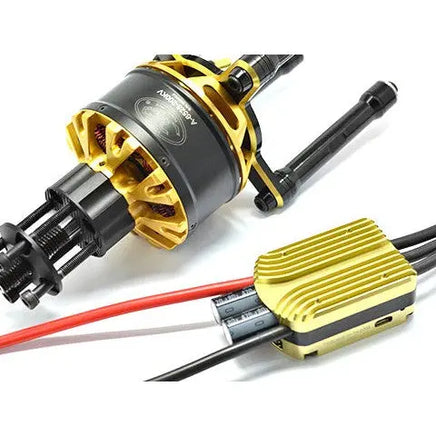

This PNP combo comes with a Scorpion A-6528-200kv motor with pre mounted and 2 tone anodized A-Series Cross Mount (50-70cc), and our sturdy A-Series Standoff Set (30-70cc), which matches perfectly the bolt hole spacing, and length of an equivalently size gas engine + common gas engine standoff. This was designed to fit under the cowl of many standard 60cc-76cc airfames and has enough adjustment shims to fine tune the spacing to your specific airframe. Paired with a pre programmed Tribunus II+ 12-200A ESC, This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.

Recommended Prop Selection :

23x10E = Efficiency / 60cc performance

24x10E = Optimal / 70cc-76cc performance

24x12E / 25x8E = High Alt

Acrobatic Weight Range -: 8.18kg - 12.7kg (18.0lbs - 28.0lbs)

Sport / UAV (single engine) Weight Range : - 12.7kg - 36kg (28.0lbs -80lbs)

Recommended (Acrobatic) Battery Size - : 12s (44.4v) 5000-6000mah Lipo

Recommended (sport / UAV) Battery Size - : 12s (44.4v) 8000-32,000mah Lipo
