●AP5A Flight Control System x 1
●GNSS Remote Receiver x 1
●Transmitter x 1
●G2A 1080 2-axis Gimbal x 1
●Front Obstacle Avoidance Radar x 1
●Altitude Radar x 1
●6S 6000mAh Intelligent Battery x 1
●Balance Charger x 1
●Enhanced Control Hook x 1
●Carry Case x 1
●Body Height: 290 mm
●Foldable Rotor: 7.5 inch
●Propeller Diameter: 415mm
●Power System: RCM-BL4213 Motor(370KV)
●Max Flight Range: 3 km (no interference)
●Max Flight Altitude: 500 m
●Max Flight Speed: 18 m/s
●Empty Weight: 2.5 kg
●Takeoff Weight: 3.67 kg (including battery)
●Max Takeoff Weight: 7.47 kg
●Payload Capacity: 3.5 kg
●Flight Time (No Payload): Approx. 22 minutes
●Max Wind Resistance: Level 7
●Positioning Accuracy:
Vertical: ±0.5 m (under normal GNSS signal)
Horizontal: ±0.5 m (under normal GNSS signal)
●Omnidirectional Obstacle Avoidance Radar

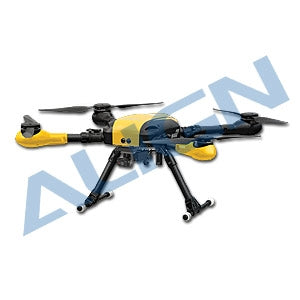

RM46002XW ALIN M460S Aerial Photography Drone
Focus Shots
ALIGN M460S Aerial Photography Drone
Standard Equipment
●M460 Drone Kit Set x 1●AP5A Flight Control System x 1
●GNSS Remote Receiver x 1
●Transmitter x 1
●G2A 1080 2-axis Gimbal x 1
●Front Obstacle Avoidance Radar x 1
●Altitude Radar x 1
●6S 6000mAh Intelligent Battery x 1
●Balance Charger x 1
●Enhanced Control Hook x 1
●Carry Case x 1
Product Specification
●Wheelbase: 660 mm●Body Height: 290 mm
●Foldable Rotor: 7.5 inch
●Propeller Diameter: 415mm
●Power System: RCM-BL4213 Motor(370KV)
●Max Flight Range: 3 km (no interference)
●Max Flight Altitude: 500 m
●Max Flight Speed: 18 m/s
●Empty Weight: 2.5 kg
●Takeoff Weight: 3.67 kg (including battery)
●Max Takeoff Weight: 7.47 kg
●Payload Capacity: 3.5 kg
●Flight Time (No Payload): Approx. 22 minutes
●Max Wind Resistance: Level 7
●Positioning Accuracy:
Vertical: ±0.5 m (under normal GNSS signal)
Horizontal: ±0.5 m (under normal GNSS signal)
Optional Equipment
●RTK●Omnidirectional Obstacle Avoidance Radar
Flight Safety
