HEG00015 Obstacle Avoidance Radar-Mad 4 Heli

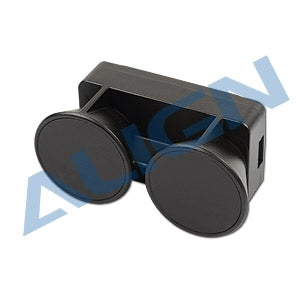

HEG00015 Obstacle Avoidance Radar

$425.00
SKU: HEG00015
Available for pre-order
Product:
Package:
Instruction: Specification:
●Suitable for ALIGN E1

●During the work, when an obstacle (such as traffic light, trees, bushes and buildings) is detected by radar 15m away in front, the system will emit an alarm and brake to keep aircraft safe.

Besides, it can turn ON/OFF the radar from APP ground station:
●When it’s ON, the APP will make alarm warning and stop to hover when radar detect an obstacle.
●When it’s OFF, the APP will make alarm warning and pilot need to manually slower the aircraft flying and keep the aircraft away from the obstacle.

Importance:
The obstacle avoidance radar is just a flying assistant. Each user needs to pay 100% attention and responsible of each flights. Users must ensure the flying environment is safe, and keep crowds and obstacle away for flying safety.

●Transmission Frequency24GHz
●Power Consumption
400mW
●Detection Range
0.5~25m(Depend on target size and material)
●Detection Angle
Horizontal 34 degree / Vertical 34 degree
●Effictive Flight Condition

  Flight Altitude over 1.5m
  Flight Speed lower than 5m/s
●Start Safe Braking Distance
6m
●Safe Braking Distance
2~3M
●Approaching Direction
Forward-looking

Content:
●Obstacle Avoidance Radar x 1

●Obstacle Avoidance Radar Signal Wire x 2
